26. Self diffusion coefficients for pure acetone and toluene at different temperatures from molecular dynamics simulations

26.2.1. Accuracy and precision

Generally, the accuracy of data computed with classical molecular dynamics depends on the forcefield – here, PCFF+ – used to describe the molecular interactions present in the system. Forcefield parameters for specific molecules and molecular interactions are obtained from experiments or high-precision computational methods. Therefore, when applied within the appropriate application range, they reproduce certain experimental observables very well. In practice, reaching the accuracy attainable by a given forcefield requires precise, well-converged simulations. For self-diffusion coefficients, several parameters control the precision of a calculation:

1. The model system size – The number of molecules must be large enough to guarantee good statistical sampling. Thus, for a given fluid density, we need a sufficiently large simulation box [11]. We will discuss this in greater detail in the section on the Finite Size Effect, where we also present methods to evaluate the self-diffusion coefficient in the limit of an infinite-size model.
2. The duration of the molecular dynamics simulation – A dynamics run must be long enough for the system to reach the so-called “diffusive regime”, or, in other words, the section of its dynamics trajectory, where the Mean Square Displacement (MSD) increases proportionally with simulation time (t). The time it takes to reach this regime typically increases with the size of the diffusing species and the viscosity of the system. Reaching the diffusive regime may require simulation times ranging from several nanoseconds to hundreds of nanoseconds. The MedeA Diffusion module simplifies and automates the procedure of verifying the transition of the system to the diffusive regime.
3. The number of independent initial fluid configurations – For improved statistics, several separate configurations, all of them thermally equilibrated at the same density, should be investigated.
4. When dealing with a multicomponent system, precision can also be improved by increasing the number of diffusing species (molecules) in the system; however, care should be taken to avoid the molecules interacting with each other and artificially influencing the apparent diffusivity.

26.2.2. Setting up the simulation

In the MedeA Molecular Builder, we set up individual acetone and toluene molecules and assign them the status of subsets “acetone” and “toluene” before constructing the respective fluid in the MedeA Amorphous Materials Builder. For an initial trial size, we choose a periodic model with a cell length of around 30 \({\mathring{\mathrm{A}}}\).

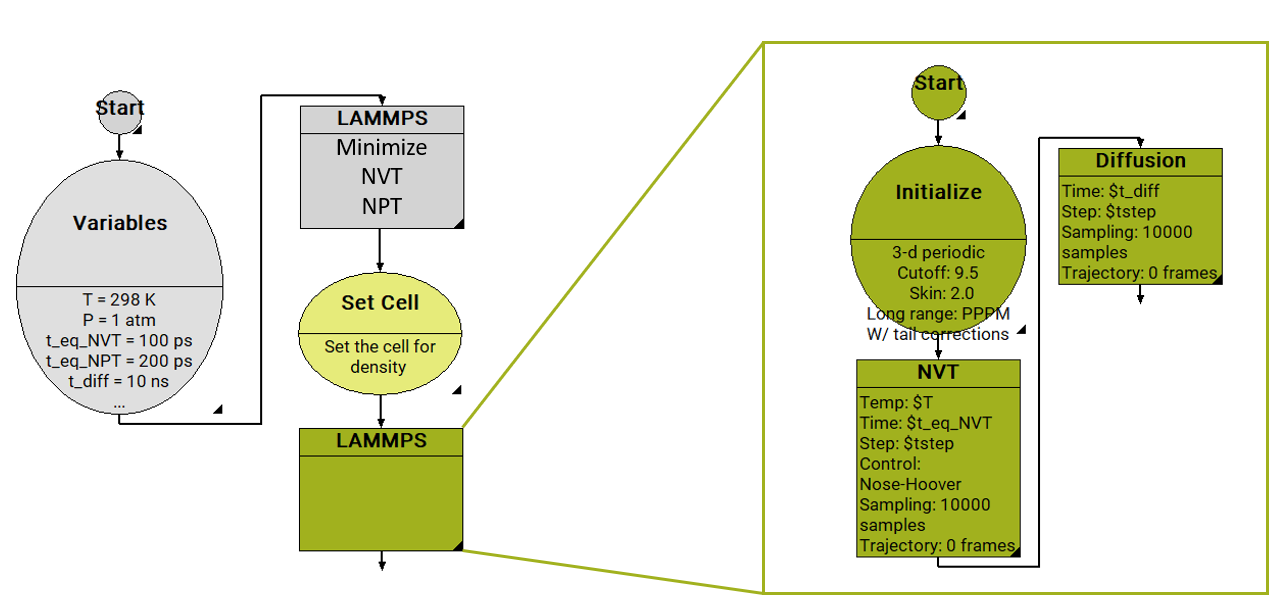

In Figure 26.2.2.1, we show a workflow to determine diffusion coefficients with the MedeA Diffusion module using LAMMPS as the MD engine. It starts with a Variables stage, by defining input parameters such as temperature, pressure, and the duration for each MD run. First comes a LAMMPS equilibration stage for the density (NVT, NPT), and a step to reset the model cell to this density. This is followed by another LAMMPS stage, which determines the diffusion constant in the microcanonical ensemble (NVE).

In the NVE ensemble, the number of particles, the volume of the cell, and the energy are held constant. Performing the “production” dynamics run in the NVE ensemble ensures that the molecular dynamics trajectories are not altered during the run. Running in the NVT or NPT ensemble, changes to the particle trajectory would occur because of the exchange with the thermostat and barostat, required to keep the temperature and pressure constant.

Figure 26.2.2.1 Screenshot of MedeA flowchart for the equilibration of a liquid at given T, P, followed by a diffusion calculation.

26.2.3. Verifying energy and temperature conservation

During the production run, energy and temperature must not show more than a small drift throughout the simulation. Figure 26.2.3.1 shows the running average of the total energy and the temperature during two nanoseconds of NVE simulation with a time step of 1 femtosecond, preceded by thermal equilibration at 328 K for a cell containing 200 toluene molecules.

Figure 26.2.3.2 Results for a system of 200 toluene molecules at 328K: Running averages for total energy and temperature during two nanoseconds of NVE simulation.

Ideally, NVE dynamics should conserve the energy, but a slight drift, depending on the integrator, the timestep size, the forcefield, and the temperature, may be observed. In our toluene example in Figure 26.2.3.1, the energy per cell varies by 7.5x10^-3 kcal/mol over the two nanosecond run. The temperature drift over the same duration is around 0.2 K. Therefore, we can assume the energy to be stable for temperature variations smaller than 0.2 K.

26.2.4. Confirming the diffusive regime

The simulation length must be long enough for the diffusive species to reach the diffusive regime. To confirm this, we check the following parameters:

• The computed slope (m), printed in the MedeA “job.out” file, from a log-log plot of the MSD (Figure 26.2.4.1) averaged over the simulation time for all diffusing species: when the system has reached the diffusive regime, m should be close to 1. In practice, m-values between 0.9 and 1.10 are considered acceptable.
• The square root of the MSD averaged over all diffusing species: it should be comparable to or larger than the simulation box length (L) because only then the diffusing species has sampled a significant part of configuration space. From Figure 26.2.4.2, we conclude that our toluene run with a box length of 30 Ang and the square root of the MSD of ~63 Ang meets this convergence criterion.

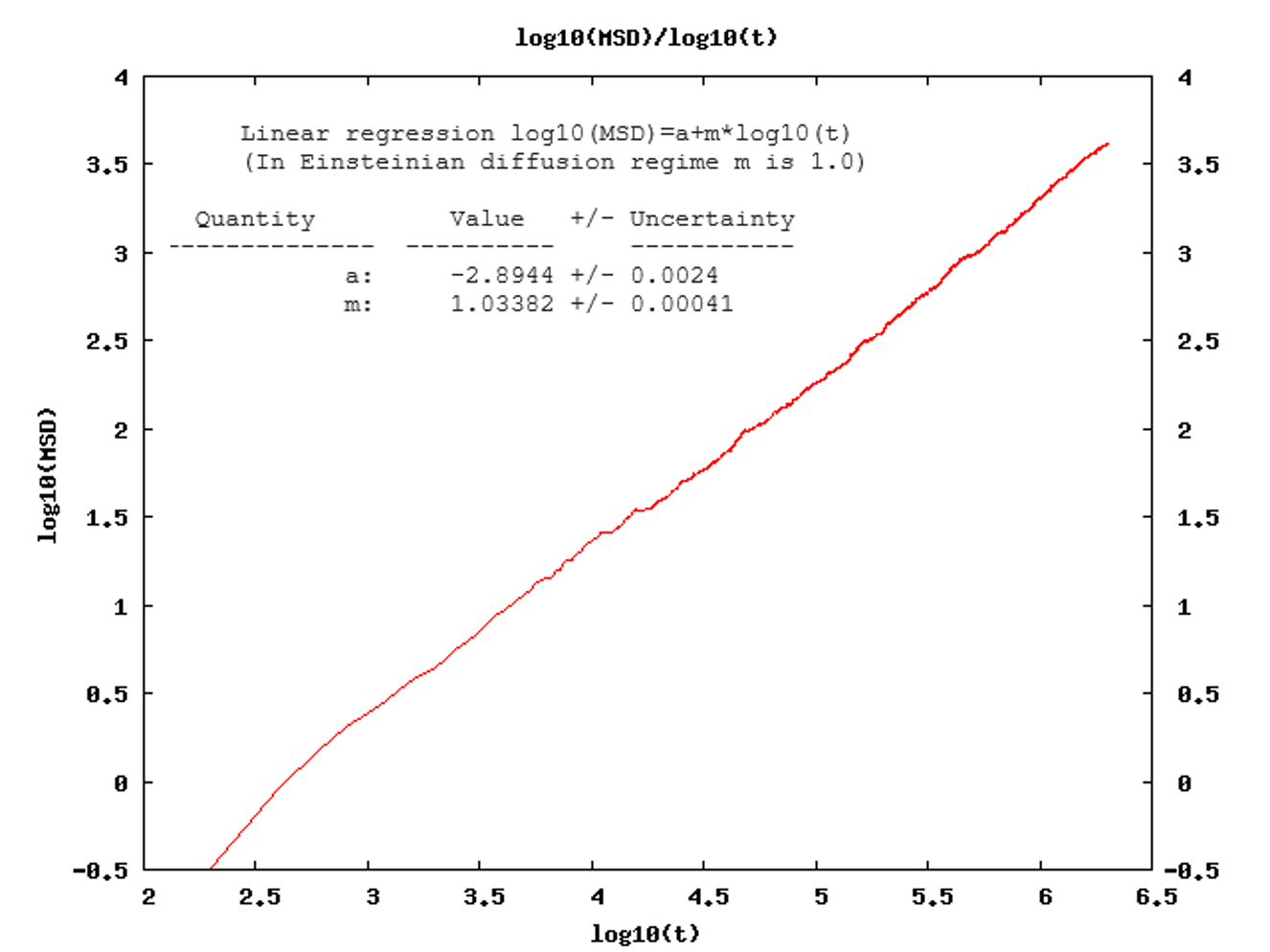

Figure 26.2.4.1 The MedeA Diffusion module plots the log(MSD) versus log(t). The job.out file provides the results of the linear regression.

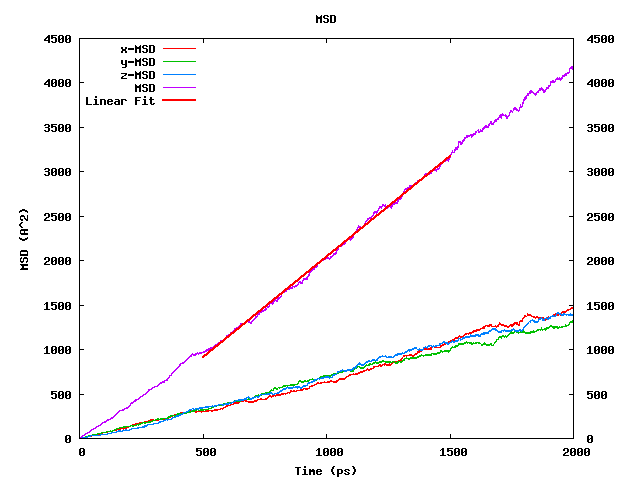

Figure 26.2.4.2 The MedeA Diffusion also module plots MSD values versus time averaged for all diffusing species.

As expected for a homogeneous liquid, the x, y, and z components are equivalent. The straight, red line labeled “Linear fit” indicates the portion of the run used for the actual analysis.

26.2.5. Fitting the computed data

The self-diffusion coefficient depends directly on the slope of the MSD-vs-time plot. For MSD analysis, MedeA selects a central region with 25% of the trajectory on each side, not used for analysis. The reason for this choice is that during the first part of the run, dynamics take place in a ballistic regime, where the MSD is proportional to t², whereas the last part of the MSD plot is affected by the sample averaging scheme requiring data to the “left and right” on the time axis. In a “well -behaved” system, the time evolution of the MSD should be linear in the “middle” region, which is the case in Figure 26.2.4.2.

MedeA summarizes the results of the linear regression fit in the job.out file shown in in Figure 26.2.5.1.

Results for a system of 200 toluene molecules at 328K: Running averages for total energy and temperature during two nanoseconds of NVE simulation.

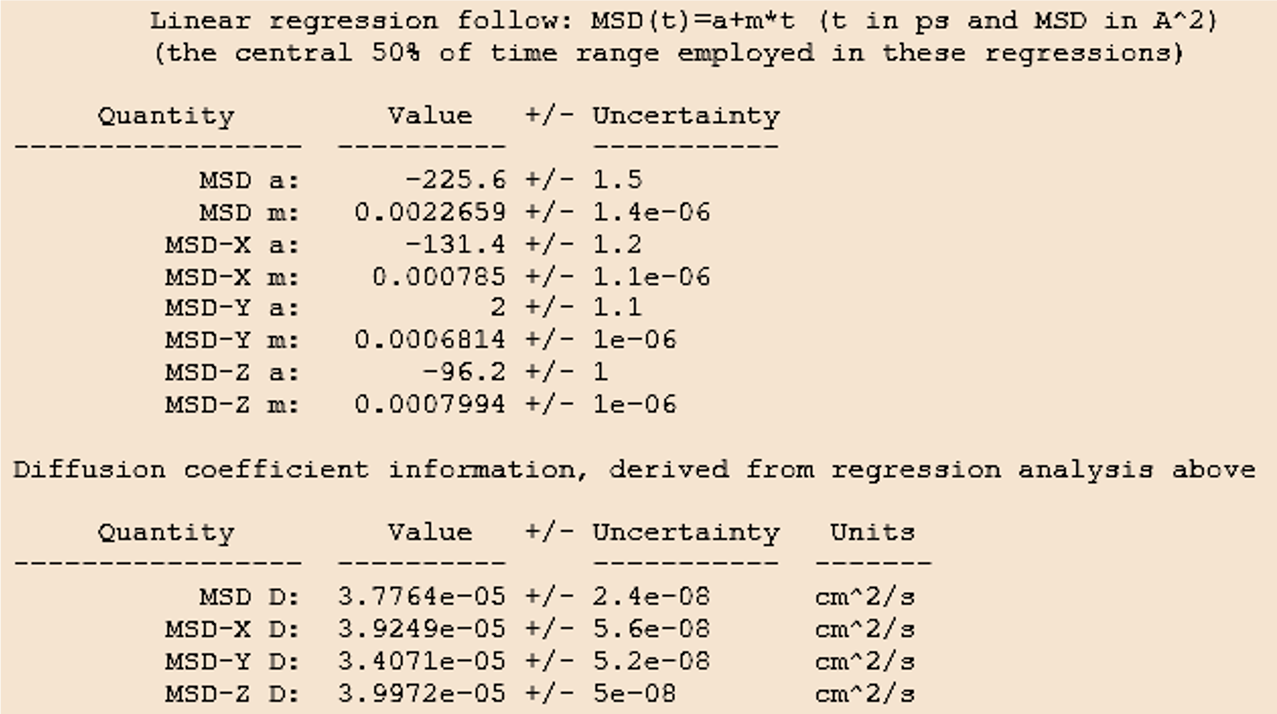

Figure 26.2.5.1 MedeA job.out: Linear regression summary and results for the average diagonal component of the self-diffusion tensor (D=1/3(Dxx + Dyy + Dzz)) and the diagonal components MSD-i D = Dii with i=x,y,z.

The upper table in Figure 26.2.5.1 lists linear regression results for the MSD over time, including the slope m.

The lower table prints the diagonal components of the self-diffusion tensors calculated from the directional MSD values (MSD-i D) and the averaged value (MSD D).

The uncertainties provided in the output correspond to the statistical error of the linear regression fit. While this uncertainty is generally small, the calculated results may vary with the initial configuration, especially when the system contains large or rigid molecules such as oligomers and polymers. Performing several calculations starting from separate fluid configurations will help to estimate the importance of configuration sampling.

26.3.1. Finite Size Effects

Figure 26.3.1.1 shows computed self-diffusion coefficients D(N) (blue squares) as a function of the number of molecules N for simulation boxes of varying sizes at constant density. Our earlier calculation for 200 toluene molecules in a 30 Ang³ box corresponds to ~1/N^1/3= 0.171 on the x-axis. We note that the computed data is affected by the model size. Assuming linear behavior and extrapolating a linear regression (blue dotted line) to 1/N^1/3 ->0, we find the limit of an infinite size model, D^∞ = 3.66 x 10^-5 cm²/s.

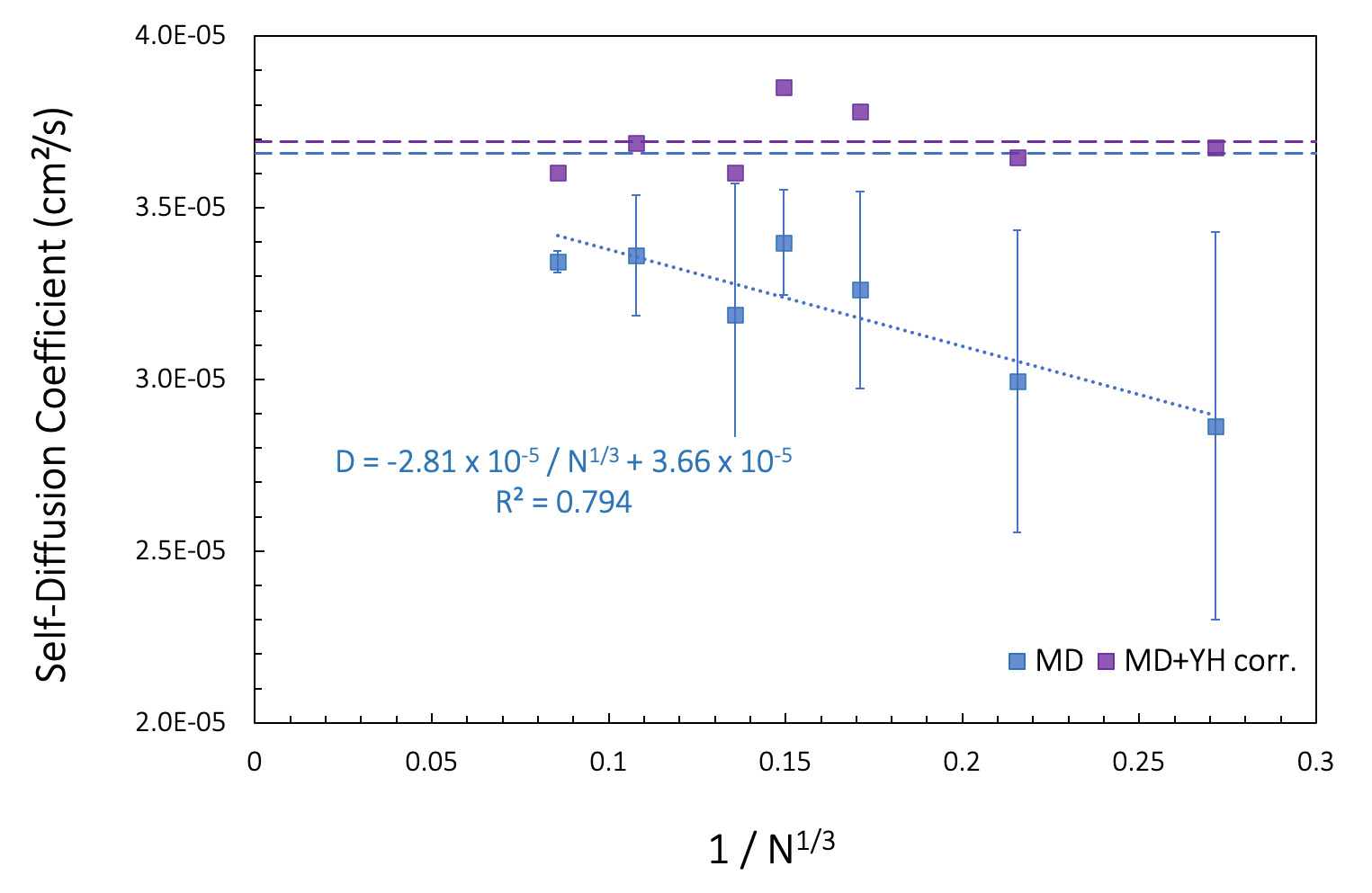

Figure 26.3.1.1 Self-diffusion coefficients calculated for fluid toluene models of different sizes at 328 K. N is the number of molecules in the simulation cell. Blue squares [2] signify computed values. The horizontal blue dashed line is \(D^{\infty}\) obtained from extrapolation of the linear regression to infinite box size (1/N^1/3 \(\rightarrow\) 0). Purple squares correspond to adding the Yeh-Hummer correction term, based on the experimental viscosity [12] of 393 \(\mu\)Pa.s. The purple dashed line is D^∞ obtained from the averaged of the corrected values.

An alternative method to derive D^∞ using a correction term based on the shear viscosity (Figure Figure 26.3.1.1) was proposed by Yeh and Hummer [11] [5].

Yeh and Hummer correlation

where \(k_{B}\) is the Boltzmann constant, \(T\) is the absolute temperature, \(\zeta\) is a dimensionless constant (~2.83), \(\eta\) is the shear viscosity, and \(L\) is the cell length.

We can use their model in two ways:

1. If the shear viscosity is available from experiment, literature, or simulation, we can calculate D^∞ using just one simulation box size.
2. Estimate the fluid viscosity from D(N) values computed at different box sizes via linear regression and D^∞.

For our toluene example, the experimental viscosity is 393 \(\mu\)Pa.s at 330 K [10]. Applying the resulting correction term to our computed D(N), we note a slight variation of D^∞ (purple squares in Figure 26.3.1.1).

The viscosity, calculated from D(N) and D^∞ extracted from the linear regression, is of 243 \(\mu\)Pa.s, somewhat underestimating the recommended experimental value of 393 \(\mu\)Pa.s for T = 330 K.

26.3.2. Temperature dependence of the self-diffusion coefficient

To determine the effect of temperature on the self-diffusion coefficients, we run the diffusion workflow as presented above, but including a loop over temperature from 328 K to 268 K. In Figure 26.3.2.1., we show results for a single fluid configuration with 200 molecules of acetone and toluene and without taking into account the finite size effect.

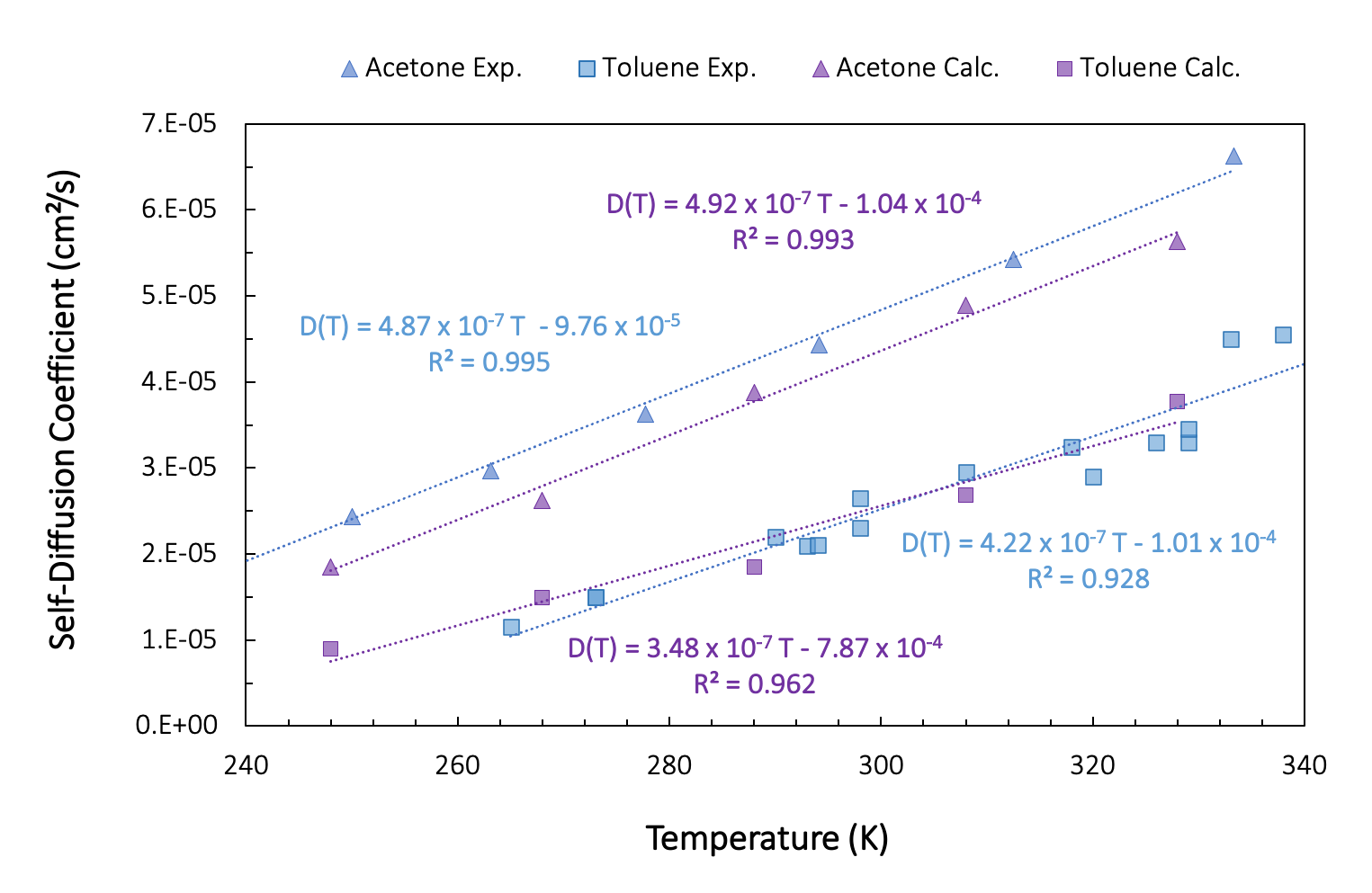

Figure 26.3.2.1 Self-diffusion coefficients for varying temperatures. Purple: Computed, Blue: Experiment.

Despite the small system size, single fluid configuration, and rather short simulation time, the computed self-diffusion coefficients are in relatively good agreement with the experiment.

For toluene, the experimental results are a compilation of experimental data extracted from work by Guevara-Carrion et al. [4]. Our computed values are within the spread of experimental data, whereas for acetone, the calculated values are systematically smaller than the experimental values.

Within a narrow temperature range, we can consider the temperature dependence of the diffusion coefficient as linear. Over a broader range of temperatures, the Arrhenius equation provides a better description. The experimental results provided for acetone in Figure 26.3.1.1 come from such an Arrhenius representation (D₀ = 1.34 ± 0.14 x 10^-3 cm²/s, E = 8.33 ± 0.25 kJ/mole) fitted on 12 experimental data points, and covering a temperature range from 183 to 331 K. The estimated error is approximately 1.93 % [13] .

Figure 26.3.2.1 shows an Arrhenius plot of our computed data for toluene and acetone.

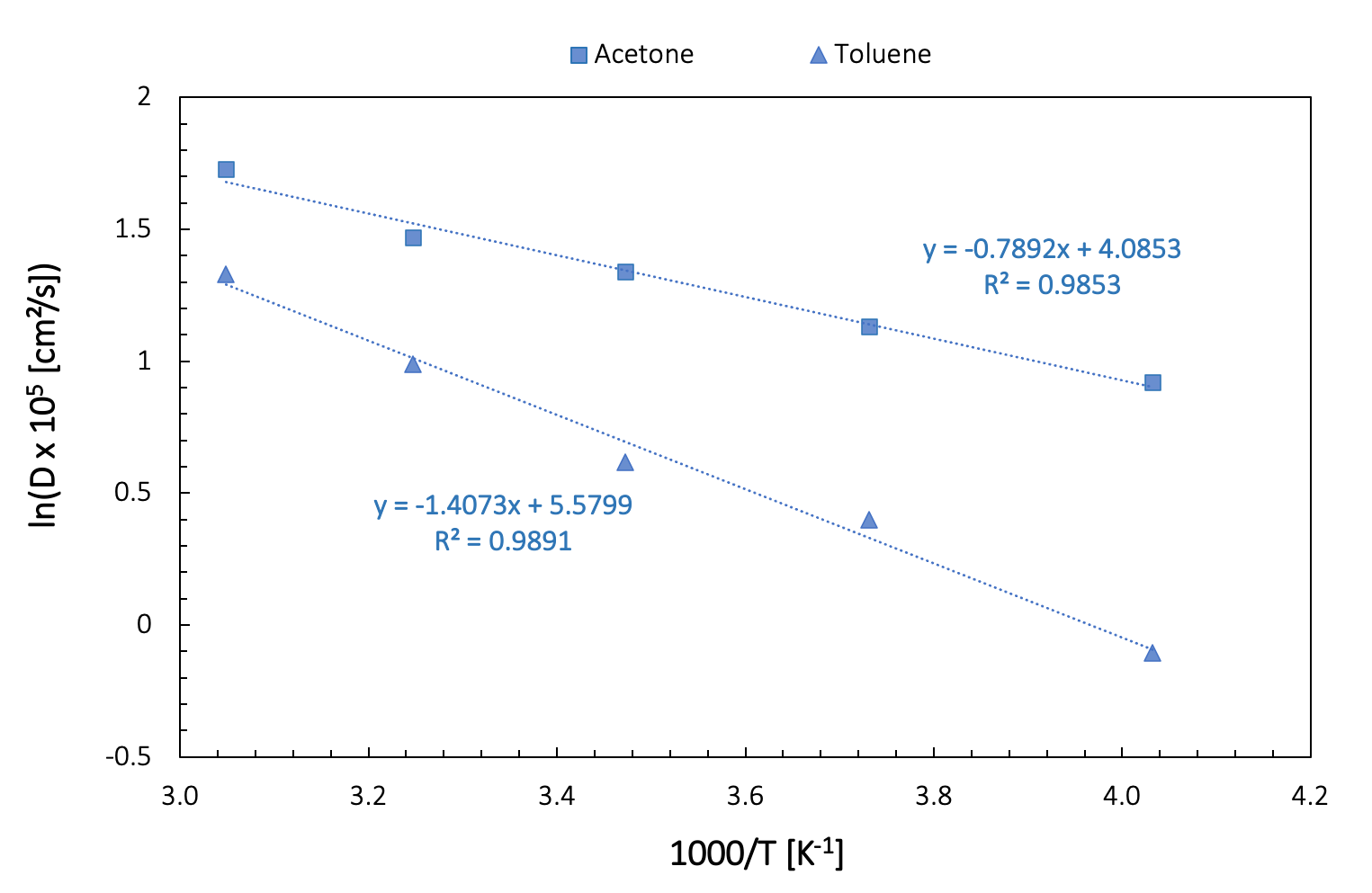

Figure 26.3.2.2 Arrhenius plot of diffusivities of toluene and acetone

The linear fit obtained from our “crude” calculations is not perfect, with R-square values inferior to 0.99. These results can be improved significantly by increasing the simulation length and by performing calculations on several fluid configurations with a somewhat larger number of molecules.

26.3.3. Interpolating

In Figure 26.3.3.1, we show experimental data for the self-diffusion coefficient of acetone at 298 K by Suarez-Iglesias et al. [14], together with our predicted values, obtained both through linear regression and by an Arrhenius plot. Applying the Yeh and Hummer correction term to our linear regression data shifts the self-diffusion coefficient up to 4.9 x 10-5 cm²/s.

Figure 26.3.3.1 Dispersion of the experimental self-diffusion coefficient of acetone at 298 K in blue measured by different NMR techniques as collected by Suarez-Iglesias, together with our predicted values interpolated using different fits.

The experimental results are obtained using various diffusometry techniques. We name standard pulsed-field gradient NMR, standard pulsed-field gradient NMR combined with magic angle spinning, steady field-gradient NMR, and intravoxel incoherent motion imaging. The predicted values are in the range of the experimental values even though closer to the lower bound than the median value evaluated at 4.6 x 10^-5 cm²/s.

26.3.4. Extrapolating

Extrapolation to higher and lower temperatures also provides a good agreement with experimental data, as presented in Figure 26.3.4.1.

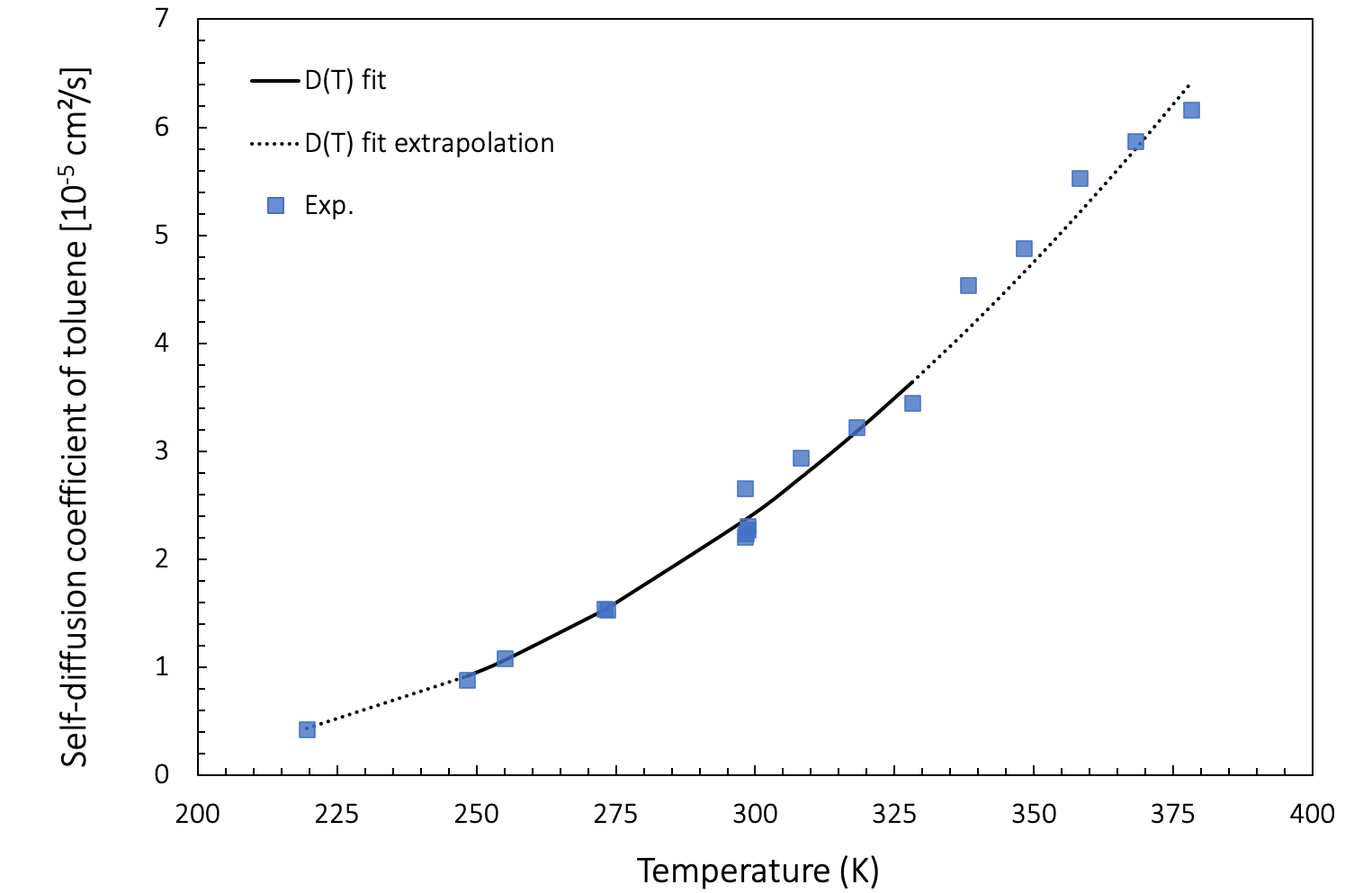

Figure 26.3.4.1 Self-diffusion coefficient as a function of temperature: Arrhenius fit of values computed between 248 K and 328 K (full black line) and extrapolation to lower and higher temperatures (dotted black line), together with experimental results (blue squares).

In a range from 219 K to 298 K, the predicted values for toluene are in good agreement with experiments by Harris [15]. For 298 K - 378 K, our computations also match experimental data obtained by Pickup [16]. The match is good even when extrapolated to lower and higher temperatures

At lower temperatures, diffusion events become increasingly rare. Molecular dynamics simulations aimed at capturing these events need to run for exponentially longer durations times. Therefore, it is often convenient to simulate diffusion at higher temperatures and extrapolate the computed data to lower temperatures using an Arrhenius fit.
